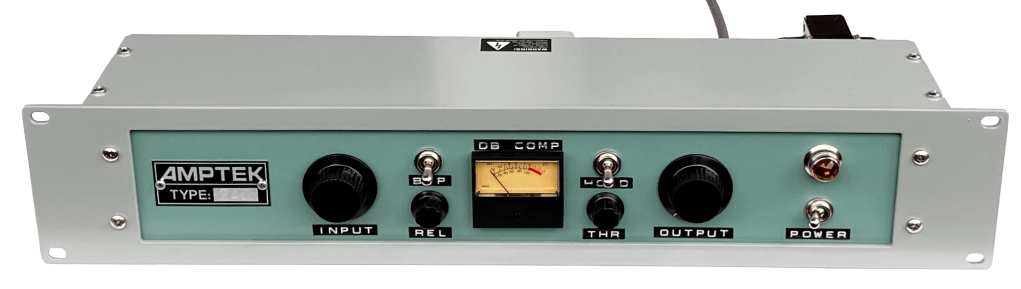

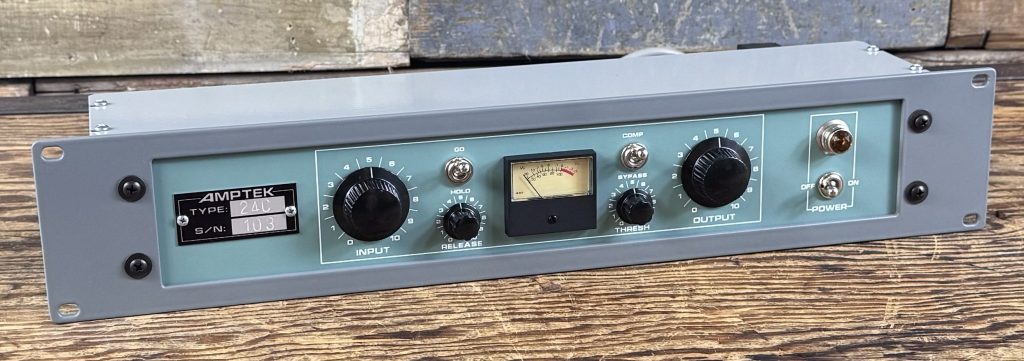

Heavily influenced by 1950s Altec PA compressors turned fabled studio gems thanks to modifications made by British EMI studio technicians, the AT-24C provides exceptionally musical vari-mu compression, riding levels at low to medium ratios depending on the amount of gain reduction applied.

Utilizing NOS tubes and Cinemag reproduction transformers reverse engineered to the original Peerless transformer specifications.

$1995

SPECIFICATIONS

MAX GAIN: 33dB (Compression Bypassed)
ATTACK: 15mS fixed
RELEASE: .2 sec to 2.5 sec, adjustable
INPUT IMPEDANCE: 10k
OUTPUT IMPEDANCE: 600

TUBES: 1 x 6ES8, 1 x 6CG7, 1 x 6AL5
INPUT TRANSFORMER:
  Cinemag 15622 (Peerless Repro)
OUTPUT TRANSFORMER:
  Cinemag 16402 (Peerless Repro w/ Original Laminations)
Polyester Film Capacitors
Carbon Composition Resistors
