DUAL CHANNEL GERMANIUM MIC PREAMP
Bring the sounds of rock n’ roll to your studio with the AMPTEK AT-31/2 Dual Channel Germanium Preamplifier. Rooted in solid state recording technology’s coming of age during the late 50s, the AT-31/2 boasts a completely vintage signal path consisting of NOS transistors including RCA Germanium, Sprague and Raytheon silicon, 1960s UTC input transformers and rotating pairs of vintage output transformers. Extreme attention to detail was taken to provide users with an authentically New-Old-School experience – a straightforward, high quality vintage analog preamp that organically brings sources to life.
Originally designed by RCA as a fixed gain preamp, gain control is implemented through altering the amount of negative feedback present in the circuit, creating a much more flexible and powerful studio piece. Increasing the gain through negative feedback reduction allows users you to drive the transistors and output transformer harder for additional coloration while forming rich harmonic content, while output control is implemented post output transformer allowing users to drive signals hotter without overloading the next unit in a signal chain.
SPECIFICATIONS
GAIN: 47dB Max
FREQUENCY RESPONSE: +/- 1dB 30-15kHz
INPUT IMPEDANCE: SOURCE 150Ω or 600Ω (switchable)
OUTPUT IMPEDANCE: 600Ω nominal
WEIGHT:
CONTROLS
GAIN: 6 position, stepped control, adjusts negative feedback present in preamp
OUTPUT: Post output transformer level trim, continuously variable
Z-In: Switches expected source impedance, resulting in tonal variations while interfacing with different microphones
POL: Polarity in / reverse switch
PAD: Standard -20dB pad toggle

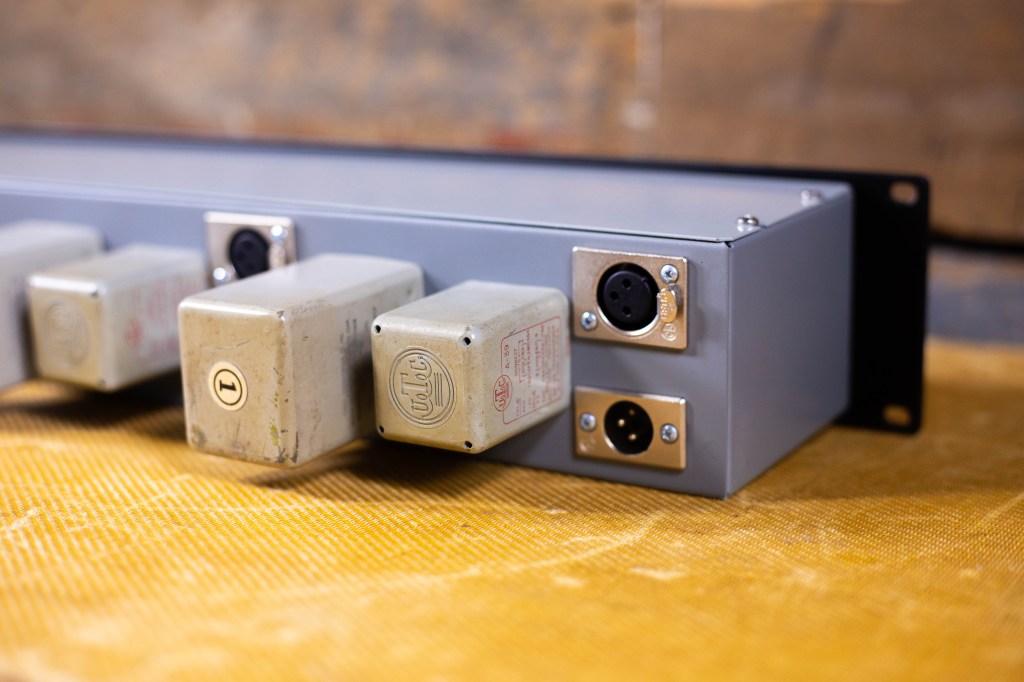

CURRENTLY AVAILABLE OUTPUT TRANSFORMER CONFIGURATIONS
2 w/ Scully 280 1960s Freed (Pictured)
1 w/ Vintage Thordarson (UTC A20 Equivalent)
1 w/ Vintage Hammond 804
$1850 + Shipping
Email AMPTEKAUDIO@GMAIL.COM to Purchase
