Inspired by the the designs of RCA tube broadcast consoles of the 1950s, the AT-5A excels as a versatile recording studio preamplifier. Offering multiple gain stage controls allows users rich analog coloration choices, while equalization is implemented through wide and smooth baxandall shelving filters.

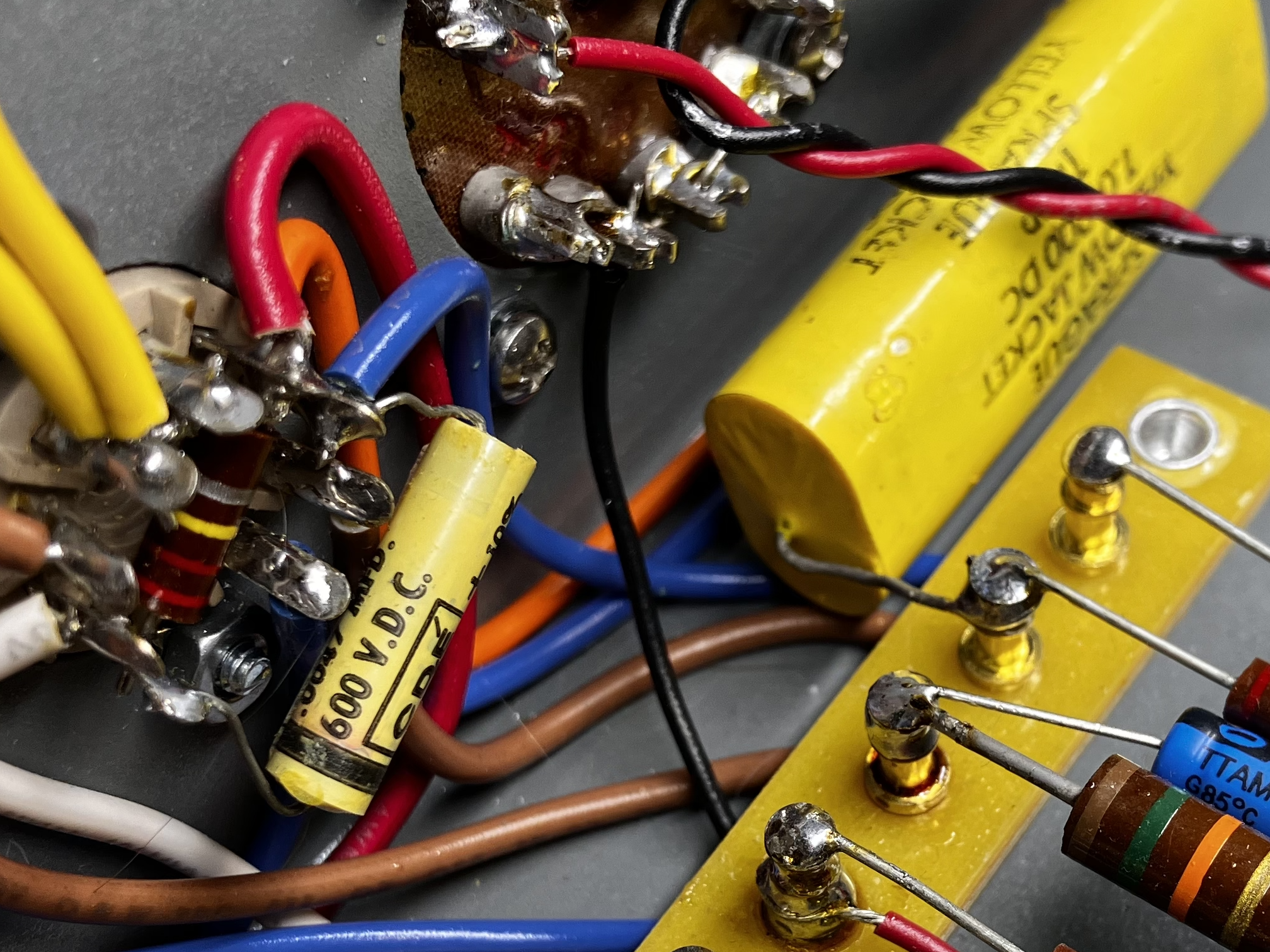

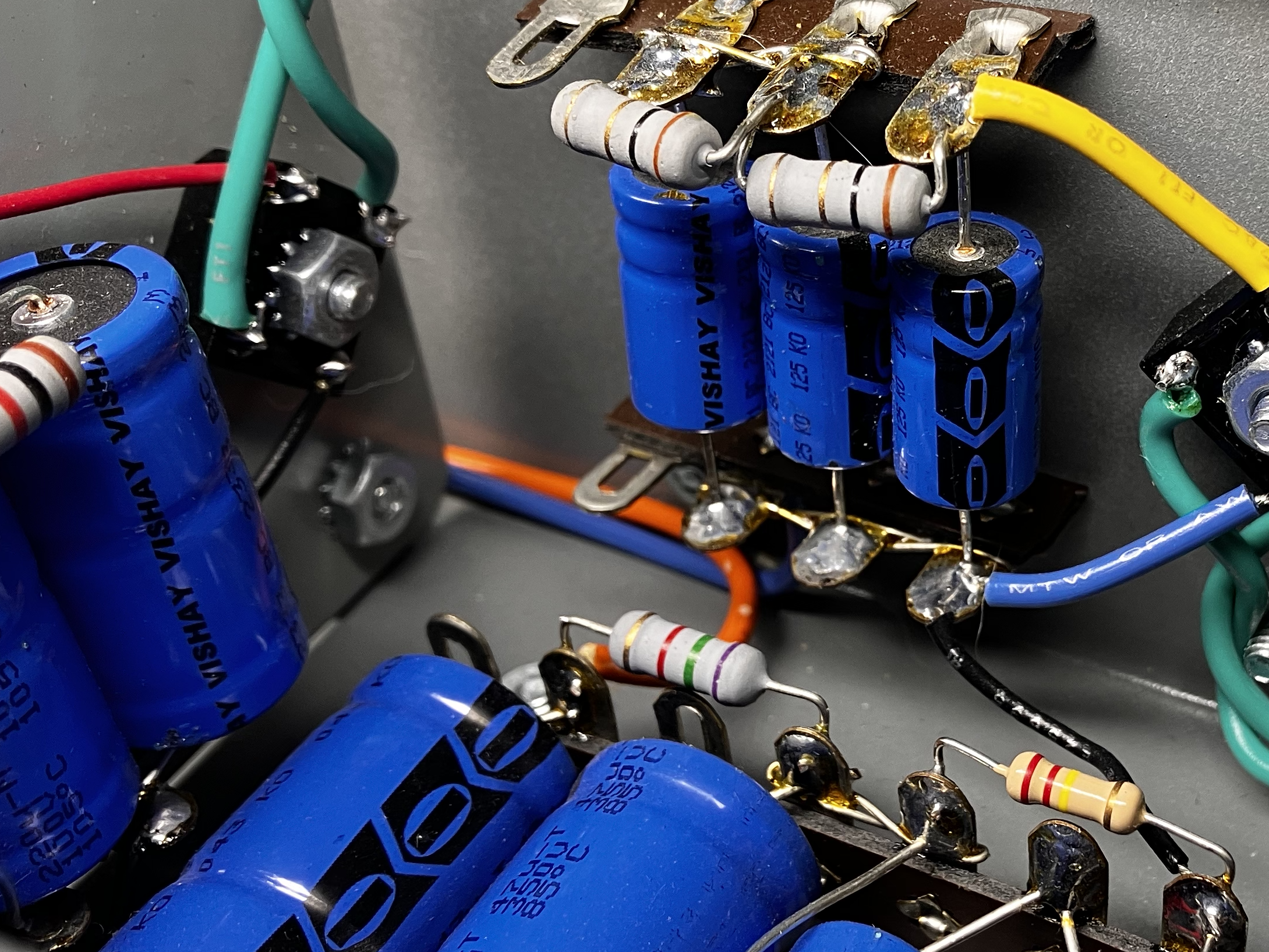

Built point-to-point with period-faithful attention to detail using the original UTC input transformers found in RCA consoles and an AMI UT24 output transformer, carbon composition resistors and polyester film capacitors, this smooth "New Old School" preamplifier is a studio workhorse for countless sources.

$1795 plus shipping

SPECIFICATIONS

GAIN: 64dB (Input, Gain, Output Max)
INPUT PAD: 0, -12, -20, -40dB
FREQUENCY RESPONSE: 30 - 15,000 Hz +/-1dB
EQUALIZATION:
  Baxanadall Shevling
    Low - 30, 60Hz
    High - 10k, 15kHz

TUBES: 2 x 12AY7
TRANSFORMERS:
  Input - OG RCA UTC M-8366 150Ω:50kΩ
  Output - AMI UT24 15kΩ:500Ω
  Power - Hammond (x2)
Polyester Film Capacitors
Carbon Composition Resistors
WEIGHT: 8lbs
